SAT-3KV

Isolation Transformer

SAT-3KV

Isolation Transformer

This is a progression of SINE's mastery innovation. In addition to utilizing the technology of cryogenic treatment, the circuit has been designed so that the electrical pathways through your hi-fi equipment has been completely separated from the polluted mains power. It eliminates electrical noise, keeps interference out and shields your beloved hi-fi from electrical shocks.




over 98 % efficency HiEnd Toroidal Transformer

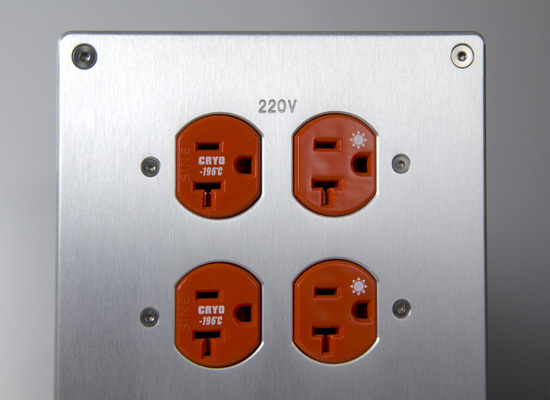

Top Grade US Cryo Gold Plated sockets

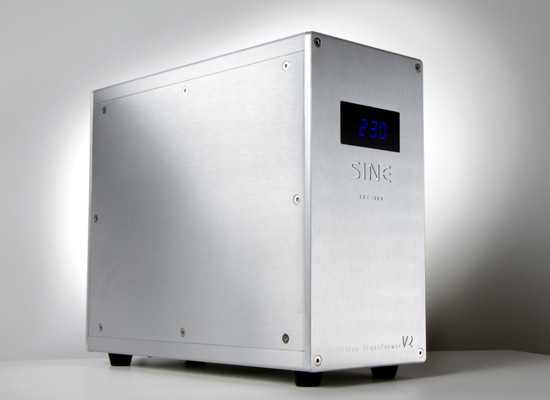

8mm Solid Aluminium Chassis Eliminlates vibration and perfect shielding

    Features:
  • 3000 VA (13 Amps) power output

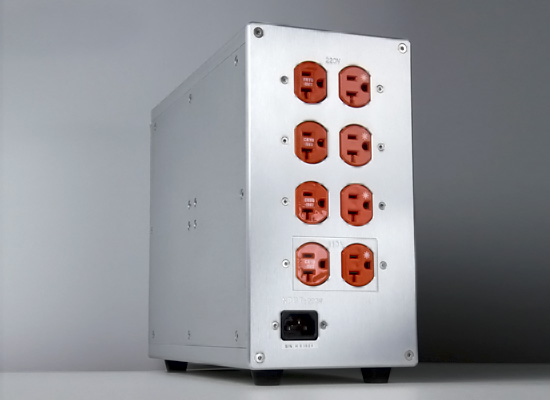

  • 4 pairs of top-quality duplex outlet
  • Extra thick gold-plated outlet and IEC male with cryogenic treatment
  • 12 AWG solid-core copper used in internal wiring
  • Equipped with hi-end compensation capacitors
  • A special compensation circuit is used to enhance the flow of electricity
  • 15 amp circuit breaker with cryogenic treatment
  • 8 mm thick aluminium-alloy chassis
Specifications:
Capacity: 3000VA
Input Voltage: 220V
Output Voltage: 220V / 110V (Optional)
Response Time: 15-20 mS
Output Distortion: No distortion, the same as input waveform
Protection: Circuit Breaker (15A)
Frequency: 50Hz
Electrical Efficiency: >98%
Regulation: +/-1%
Noise (Within 1 meter): <30dB
Operating temperature: -10°C ~ 40°C
Operating Relative Humidity: 20% ~ 85%
Net Weight: 24 Kg
Dimensions: (W)145mm (D)325mm (H)270mm
